ARP (Address Resolution Protocol)

Today we're gonna have a look at the ARP (Address Resolution Protocol).

First of all, let's watch this video below and follow the steps in the video:

https://www.youtube.com/watch?v=hx9ZZivtzEE&spfreload=10

I will start with some general information:

• ARP-Address Resolution Protocol
• ARP resolves IP addresses to MAC addresses at Layer 2
• Frames on a local network are delivered to a MAC address
• So, a MAC address needs to be resolved from an IP address before a packet can be delivered.
• ARP plays an important role in the functioning of local area networks (LAN)
• We can demonstrate the ARP process using a command prompt and Wireshark.

IP addresses help us to reach/find networks
To deliver actual frames on a local network, we need the MAC-addresses.

The MAC-address of a typical Multicast starts with those characters: 01-00-5e-..-..-..
Broadcast: ff-ff-ff-ff-ff-ff

The first three blocks (six characters) of the MAC-address are called the organization unique identifier (OUI), which identifies the company.

Command Line Interface: commands for arp





Writeout of the command arp -a: in my case it looks like this

At next, let's start "Wireshark".

Wireshark is a network analyzing tool.

Open Wireshark -> Capture -> Interfaces.. -> now choose your active interface (with the most packets)

It should look like this:



Now we have to create a filter, that only ARP's will be shown:

Options -> Capture Filter -> new -> now we create a filter with the name "ARP only"



Yet we can start the capturing process, by clicking on "OK" and subsequently "Start".

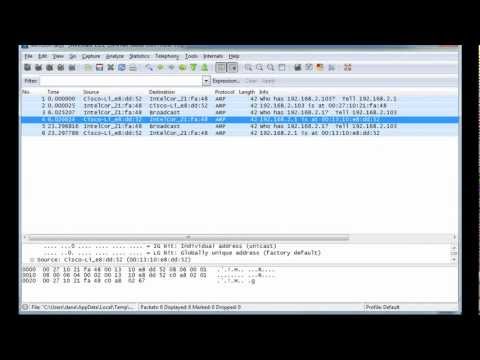

When we go for instance on a web page, we can see now a few listings.
